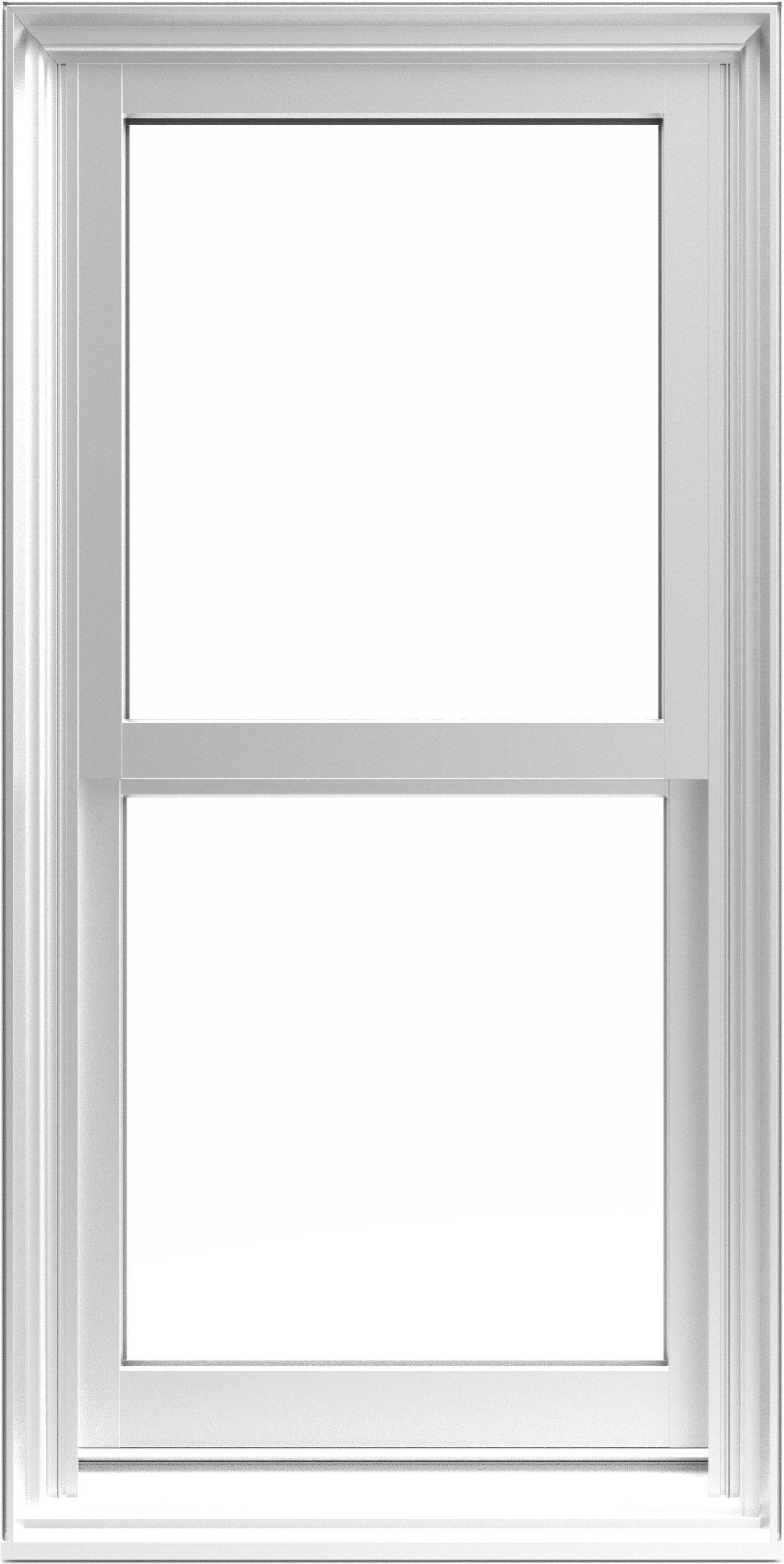

Double Hung

Window

 Rating

R-50

Air Infiltration

0.04

Solar Heat Gain

0.12-0.29

U-Factor

0.28-0.32

INSIDE

 OUTSIDE

Product Images

Features & Benefits

Superior Brighton craftsmanship has been taken one step further with the new Brighton LS Double Hung. The Brighton LS can help you create a home in harmony with your surroundings. Built with solid, treated pine, double hung windows are available in almost any size and can be stained or painted to match your décor.

INTERIOR COLORS AND TRIM

SOLID WOOD COLORS

PRIMED WHITE

PRE-FINISHED BLACK

PRE-FINISHED WHITE

UNFINISHED PINE

Pine

UNLIMITED CUSTOM COLORS
• Custom Paint Finish
• AAMA 615 (Organic Coating) to meet the most demanding environments
• The standard interior for wood products is Pine, however, other options include Pre-finished White, and Pre-finished Black.
• Wood windows and doors are also available in a primed, ready to paint, wood interior finish.

EXTERIOR COLORS AND TRIM

POPULAR COLORS

White

Black

Satin Creme

Holly Green

Chestnut

Teal

Redwood

Sandstone

Dark Bronze

Toffee

Earthtone

Agate Gray

Interstate Blue

Polar White

Sky White II

Beige Grey

New Bone White

Moss Green

Oyster White

Gloss Black

Burgandy

Telegrey I

New Dark Bronze

Patina Green

Slate Gray

RESEMBLES COLORS

Clear Anodized

Black Anodized

Champagne Anodized (Light Range)

Champagne Anodized (Dark Range)

Dark-Bronze Anodized (Dark Range)

Dark-Bronze Anodized (Light Range)

Light Bronze Anodized

UNLIMITED CUSTOM COLORS
• Custom Paint Finish
• AAMA 615 (Organic Coating) to meet the most demanding environments
• Our powder-coat paint is applied in-house and baked on for a long-lasting finish.
• SolarLE is available in Textured Black, Dark Espresso
GLASS PACKAGE Neat+ INCLUDED LoE-i89 INCLUDED U-Factor SHGC Visible Transmittance Condensation Resistance
EnergyEnhanced
LoE²-240 w/argon
n/a
n/a
n/a
n/a
EnergyNorth
LoE²-180 w/argon
Available
0.28
0.43
0.53
43
EnergyBasic
LoE²-272 w/argon
Available
0.31
0.29
0.49
55
EnergyPlus
LoE²-272 w/argon
Available
0.28
0.28
0.48
44
Energy 3S
LoE3-366 w/argon
Available
0.31
0.19
0.44
56
EnergyMax
LoE3-366 w/argon
Available
0.27
0.19
0.43
45

GRIDS

Quaker Windows & Doors offers two types of grids: interior muntins and exterior grids combined with an interior shadow bar which creates simulated divided lites (SDLs). The interior muntins are placed inside the airspace between two panes of glass. This type of muntin can be formed into almost any grid style, including radius designs. Muntins are a great option, because they are inside the glass and are dust and maintenance free.

DOWNLOADS

MORE PRODUCTS IN THIS SERIES
