Residential

Windows + Doors

Horizontal-Slider

Window

 Rating

R-40

Air Infiltration

0.05

Solar Heat Gain

0.14-0.33

U-Factor

0.24-0.29

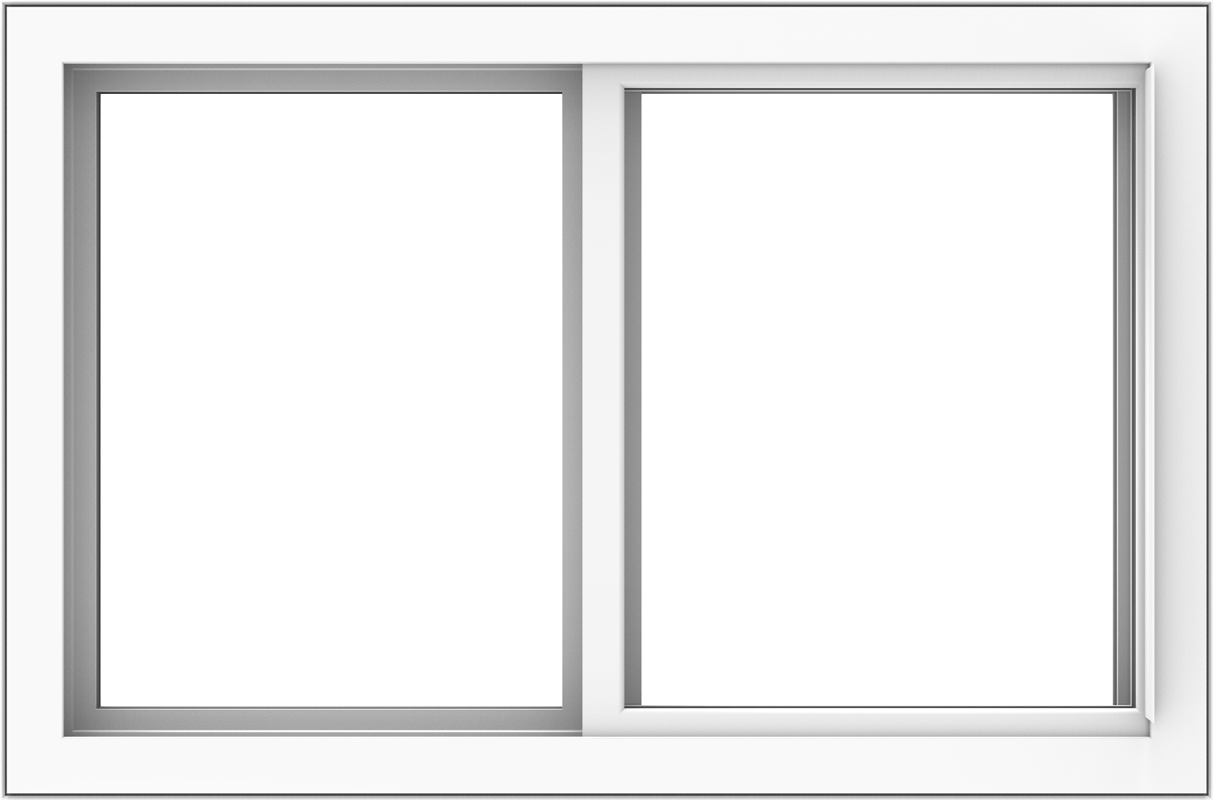

INSIDE

 OUTSIDE

Product Images

Features & Benefits

When building your new home, the Manchester Vinyl Window Series is the logical choice. The Manchester Series has it all. It’s warm, handsome, energy-efficient, and totally maintenance-free. No other vinyl window combines all of these qualities as well as the Manchester Series.

VINYL WINDOW & DOOR COLOR OPTIONS

  • Exterior paints are AAMA 615 (Organic Coating) certified.
  • Custom color matching is available for exterior paints finishes.
SOLID EXTRUDED VINYL FRAME COLORS
  • Textured Black Exterior available with textured black interior or white interior only.
  • Textured Back Interior available with textured black exterior only.
EXTERIOR PAINTED COLORS

Note: Actual colors could vary from samples shown due to differences in print and production manufacturing processes.

GLASS PACKAGE Neat+ INCLUDED LoĒ-i89 INCLUDED U-Factor SHGC Visible Transmittance Condensation Resistance
EnergyEnhanced
LoĒ²-240 w/argon
n/a
n/a
n/a
n/a
EnergyNorth
LoĒ²-180 w/argon
Available
0.26
0.49
0.60
46
EnergyBasic
LoĒ²-272 w/argon
Available
0.29
0.33
0.56
59
EnergyPlus
LoĒ²-272 w/argon
Available
0.25
0.32
0.55
47
Energy 3S
LoĒ²-366 w/argon
Available
0.28
0.22
0.50
60
EnergyMax
LoĒ²-366 w/argon
Available
0.24
0.21
0.49
48

GRIDS

Quaker Windows & Doors offers two types of grids: interior muntins and exterior grids combined with an interior shadow bar which creates simulated divided lites (SDLs). The interior muntins are placed inside the airspace between two panes of glass. This type of muntin can be formed into almost any grid style, including radius designs. Muntins are a great option, because they are inside the glass and are dust and maintenance free.

Product File Downloads

File Size Type Download
Manchester Horizontal Slider CSI Specs 116.00 KB DOC Download
Manchester Horizontal Slider Booklet 445.07 KB PDF Download
Manchester Standard Size Booklet 2.84 MB PDF Download
Manchester Series Brochure 19.90 MB PDF Download
Manchester DWG 2.28 MB DWG Download
